12.7mm Thick Heavy Equipment HDPE Temporary Road Mat 4x8 HDPE Ground Protection Track Mat

12.7mm Thick Heavy Equipment HDPE Temporary Road Mat 4x8 HDPE Ground Protection Track Mat

XinXing Ground Protection Mats creates an in stand roadway over virtually any type of terrain mud,sand,marshy,uneven or soft terrain. HDPE ground protection mats is tested in extremes of hot and cold climates and extremely durable to withstand vehicle weights up to 60 tons for size 1220x2440x12.7mm.


Standard size is 1220x2440mm(4x8ft),it also can be cut to size as your requirement.
Thickness can be:12.7mm,15mm,20mm,38mm,etc.

Product Overview

12.7mm Thick Heavy Equipment HDPE Temporary Road Mat 4x8 HDPE Ground Protection Track Mat

Products Description
HDPE ground protection mat/Composite Polymer Rig Mats for Oil Drilling/Temporary Access Road Mat
Material: HDPE Composite Ground Protection Mat/UHMWPE Composite Ground Protection Mat

XinXing Ground Protection Mats creates an in stand roadway over virtually any type of terrain mud,sand,marshy,uneven or soft terrain. HDPE ground protection mats is tested in extremes of hot and cold climates and extremely durable to withstand vehicle weights up to 60 tons for size 1220x2440x12.7mm.

Standard size is 1220x2440mm(4x8ft),it also can be cut to size as your requirement.
Thickness can be:12.7mm,15mm,20mm,38mm,etc.


Free sample is available.
Extruded HDPE Construction Road Mat(4 Types surface all can be available)

Type A

Height: 3mm
Suitable for Pedestrians.

Type B

Height: 5mm
Suitable for Vehicle.

Type C

Height: 8mm
Suitable for Heavy Vehicles.

Type D

Height: 4mm
Suitable for Pedestrians and Vehicles.
The surface can be composed of any combination of two patterns,like Type A and Type C;Type B and Type D.

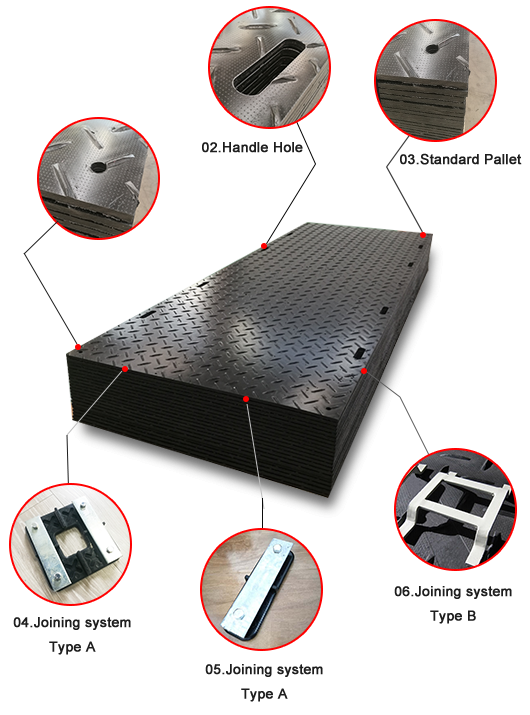

Product Structure:

Any color can be available:
XINXING Road mat can be connected together using our professional connectors to create a secure track way or work pad.


Besides the HDPE composite ground protection mat,we also can provide UHMWPE composite ground protection mat.

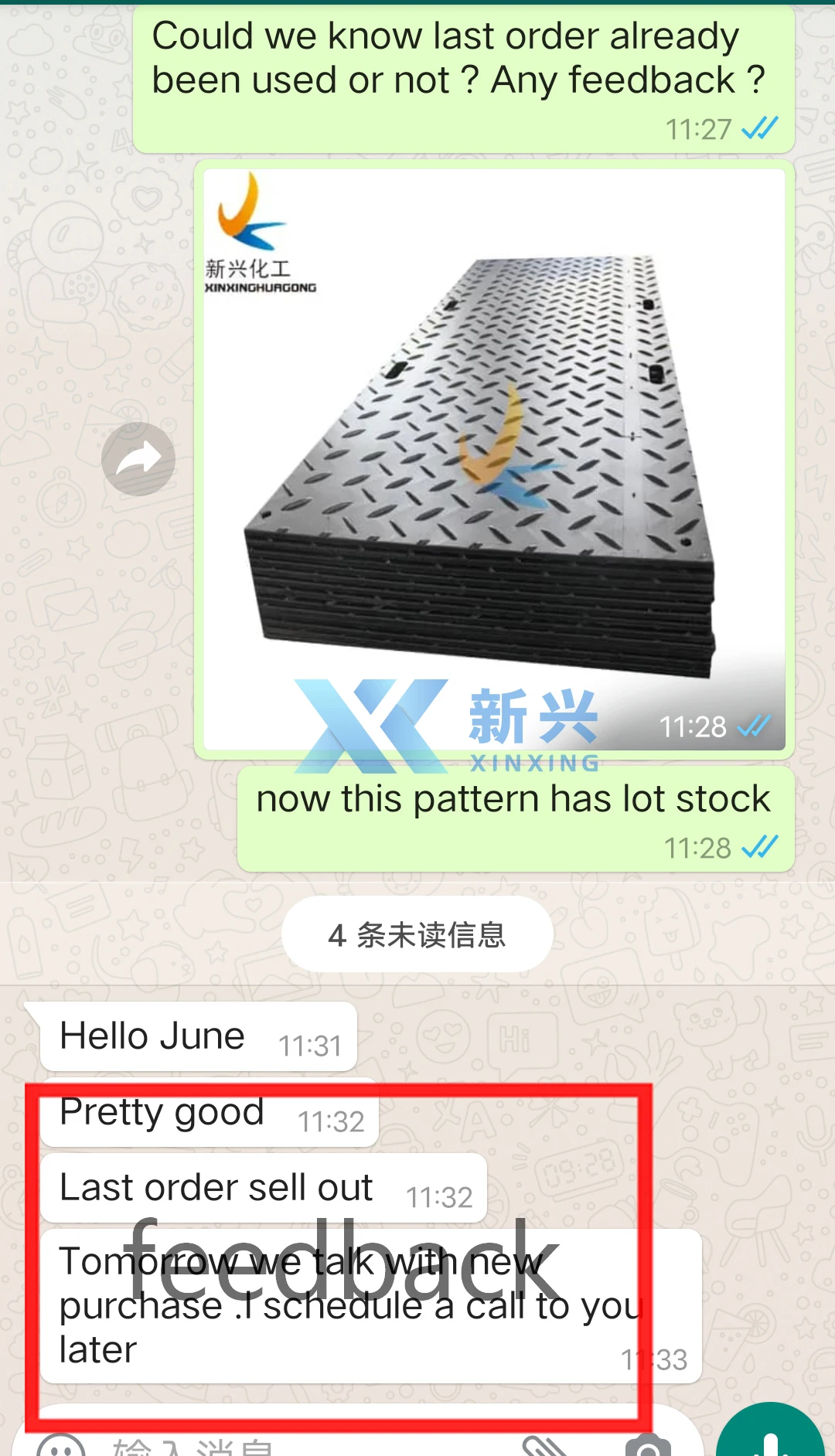

Good Feedback From Customer
SPECIFICATIONS
HDPE Composite Ground Mat:
Series No.
Size (mm)
Thickness with texture (mm)
Unit weight (kg)
Effective Surface Area (sqm)
Load Capacity (tons)
XE01
2000*1000*10
20
22.6
2.00
30
XE02
2440*1220*12.7
22.7
42
2.98
60
XE03
5900*2000*28
36
346
11.80
120
XE04
2900*1100*12.7
22.7
45
3.20
50
XE05
3000*1500*15
25
74
4.50
80
XE06
3000*2000*20
28
128
6.00
100
Remark:
- For wheel correspond
- Pattern height 5 mm for one side
- Color: black, white, green, yellow , red, pink ,blue.
- Customized color and size is available.
- We support OEM, package and Logo all can be costomized !
UHMWPE Composite Ground Mat:
Series No.
Size (mm)
Thickness with texture (mm)
Unit weight (kg)
Effective Surface Area (sqm)
Load Capacity (tons)
XP01
3000*2500*38
47
293
7.50
120
XP02
4500*2500*38
48
351
9.50
120
XP03
3000*2500*25
34
195
7.50
100
XP04
3000*2500*20
29
158
7.50
80
Remark:
- For wheel and tracked correspond
- Standard color is black.

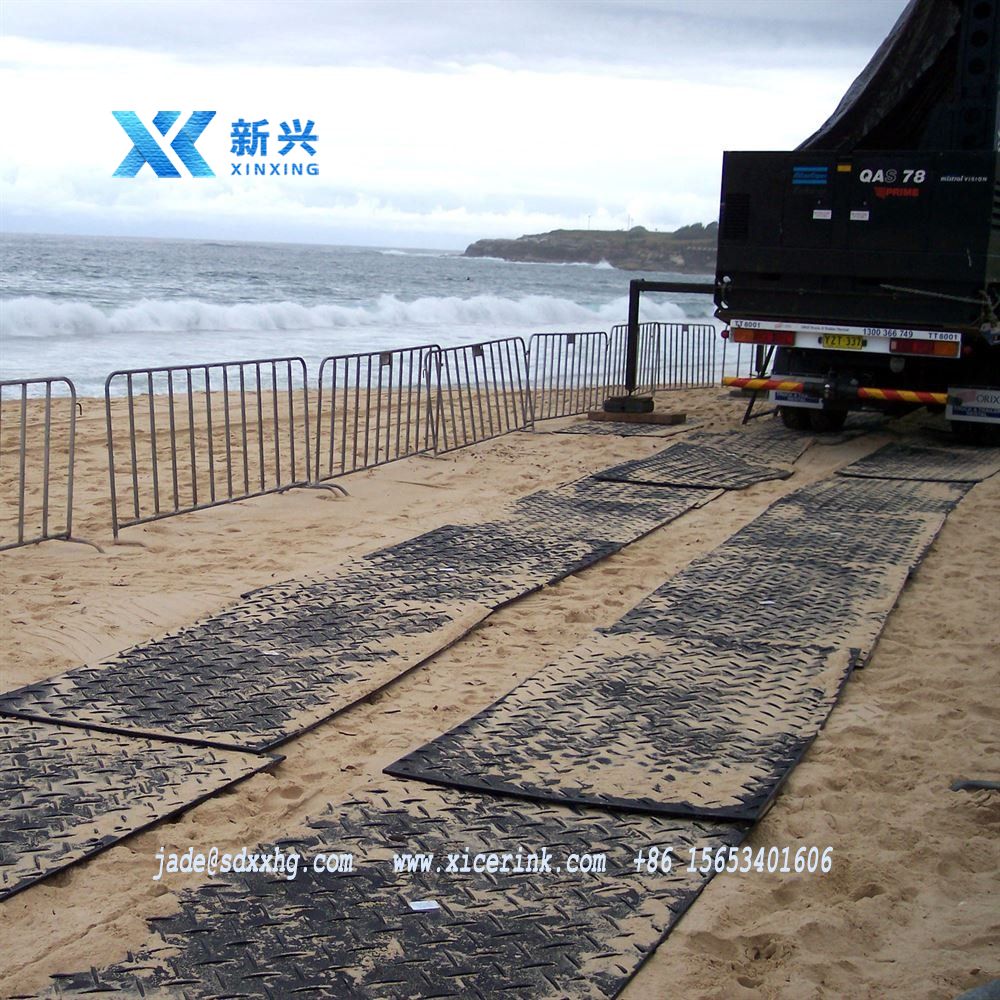

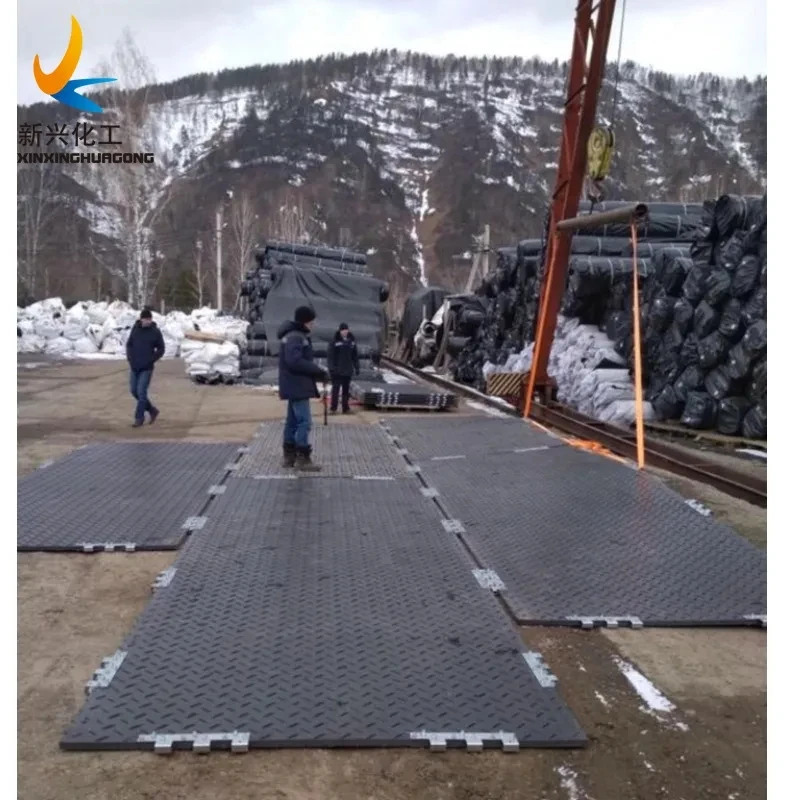

CASES

Case on Construction Site from Australia

Case on Construction Site from Indonesia
APPLICATION
Application of Ground Protection Mats
*Protect your turf and provide access nearly anywhere
* Temporary flooring
* Stadium ground covering
* Contractors
* Outdoor Events/shows/festivals
* Building site access works
* Construction,civil,engineering and ground work industries
* Emergency access routes
* Golf coures and sports field maintenanc
* National Parks
* Landscaping
* Utilities and infrastructure maintenance
* Boat regarras
* Cemeteries
* Temporary roadways and carparks
* Caravan parks
* Heritage sites and eco friendly areas.


Xinxing is the largest Group manufacturer of engineering plastics in China. Xinxing's main products include UHMWPE & HDPE sheets,  double colour HDPE sheets and parts, as well as custom machined plastic parts such as, UHMWPE Synthesis of ice, PE hockey shooting board, plastic ice rink barrier, ICE  RINK system, ICE HOKCEY RINK SYSTEM, FLOORBALL RINK, SOCCER REBOUNDER etc. Email: jade@sdxxhg.com

Product Name: 12.7mm Thick Heavy Equipment HDPE Temporary Road Mat 4x8 HDPE Ground Protection Track Mat
